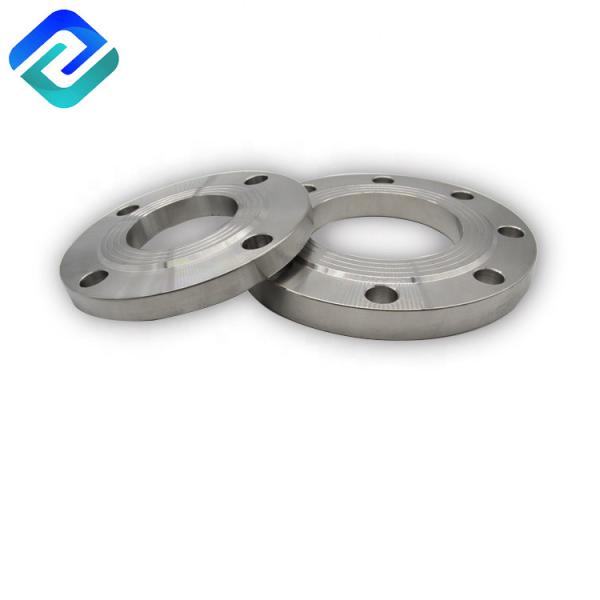

DN80 DN100 DN150 DN600 Slip On Stainless Steel Flange
1. Stainless steel flanges is the parts which connects two pipe ends,
stainless steel flanges connection is defined by the stainless
steel flanges, gasket and bolt three are connected as a group of
combined sealing structure of the detachable connection.
2. The gasket is added between the two stainless steel flanges and
then fastened by bolts. Different pressure stainless steel flanges,
thickness is different, and the bolts they use are different, when
pump and valve connect with pipe.
3. Stainless steel flanges connection,usually closured bolted
connection parts are also known as stainless steel flanges, such as
the connection of ventilation pipe, this kind of parts can be
called "stainless steel flanges type part", but this connection is
only part of a device, such as the connection between stainless
steel flanges and water pump.
4. Another meaning of the national standard stainless steel flanges is: the stainless steel flanges plate produced according to the size and
tolerance range required by the national standard is different from
the stainless steel flanges plate produced not according to the
standard size, which is also called the second standard stainless steel flanges (some people call non-standard stainless steel flanges is incorrect).
3. Usually some unscrupulous businessmen will reduce the thickness
and outer diameter of the stainless steel flanges plate to achieve the purpose of saving
materials, and use waste steel or leftover materials Steel
processing stainless steel flanges, usually this kind of steel is not up to
the standard of chemical composition and mechanical properties of
waste.
We produce stainless steel flanges according to ISO9001-2000.
1), Sizes: 1/2 inch-48 inch, DN15- DN1200
2), Material: 304, 306, 304L, 306L
3), Standard: ANSI, JIS, DIN, BS4504, SABS1123, EN1092-1, UNI,
AS2129
4), Types: WN, SO, BL, Plate, Thread, Socket and etc
5), Process: free forging, plate cutting
6), Packing: in wooden cases and pallets or as per customers'
special requirements
7), Delivery: usually within one month after receiving the formal
order
8), Inspection: factory in-house self check or Third Party
inspection upon requests.
| Product Name | Class 150 Flange Dimensions Stainless Steel Flange Fitting Pipe
Flange |
| Items | Plate, Welding Neck, Slip on, Blind, Socket Welding, Lap joint,
Threaded Flange etc. |
| Standard | ANSI | ANSI B16.5, ASME B16.47 series A/B |
| DIN | Germany 6bar, 10bar, 16bar, 25bar, 40bar |
| GOST | GOST 12820/12821/12836 |
| EN1092-1 | EN1092-01/05/11/12/13 |
| JIS | JIS B 2220-1984, KS B1503, JIS B 2216 |
| BS4504 | BS4504 BS10 Table D/E |
| Material | ANSI | CS A105, S235, Steel 20; SS 304/304L, 316/316L |
| DIN | CS RST37.2, S235JRG, P245GH, P250GH; SS 304/304L, 316/316L |
| GOST | CS Steel 20, 16MN, Q235 |
| EN1092-1 | CS RST37.2, S235JRG, C22.8 |
| JIS | SS400, SS 304/304L, 316/316L |
| BS4504 | CS RST37.2, S235JRG, C22.8; SS 304/304L, 316/316L |
| Pressure | ANSI | Class 150, 300, 600, 900, 1500, 2500lbs |
| DIN | PN6, PN10, PN16, PN25, PN40 |
| GOST | PN6, PN10, PN16, PN25, PN40, PN63, PN100 |
| EN1092-1 | PN6, PN10, PN16, PN25, PN40, PN63, PN100 |
| JIS | 5K, 10K, 16K, 20K, 30K, 40K |
| BS4504 | PN6, PN10, PN16, PN25, PN40 |
| Size | ANSI | 1/2 " - 80 " |
| DIN | DN15-DN2000 |
| GOST | DN15-DN2000 |
| EN1092-1 | DN15-DN2000 |
| JIS | 15A-1500A |
| BS4504 | DN15-DN2000 |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q:What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but
the customers have to pay the sample cost and
the courier cost.
Q:Do you offer customization or OEM service?
A:Yes. We offer OEM service. We accept custom design and we have a
professional design team who can design products based on your
requirements. And we can develop new products according to your
samples or drawings. But if Brand OEM,please offer the brand letter
of authorization to me for exporting later.
Q:When can I get the quotation?
A:We usually quote within 12 hours after we get your inquiry.If you
are very urgent to get the price,pls call us or tell us in your
email so that we will regard your inquiry priority.
Q:Wat's seller's Shipping method ?
A: It means that we will choose a better shipping method such as
DHL/UPS/EMS/FEDEX which is according to your country.
Q:What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown
cartons. If you have legally registered patent, we can pack the
goods in your branded boxes after getting your authorization
letters.
Q: What's the payment term?
A: We accept T/T, western union, L/C and Trade Assurance. For bulk
order by T/T and Western Union, we will require 30% deposit first
and 70% balance before delivery.
